Schonstedt Pipe and Cable Locators

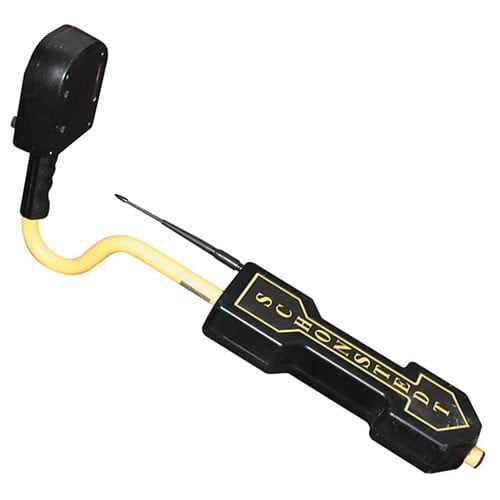

There are several TraceMaster II pipe and cable locator options. The top of the line model offers three active frequencies (575Hz, 8kHz, 82kHz) and choice of one passive frequency (50Hz or 60 Hz) with a radio link to control the transmitter from the receiver like a remote. Choice of sonde is available.

An alternative model with manually adjusted frequencies and no radio link.

• Passive detection of 50Hz or 60Hz, sonde frequency
• One button depth measurement
• Digital readout display of signal strength
• LCD displays left, right and “on-target” indications, as well as battery status
• Transmitter, 8-Hours operational battery life (intermittent usage)
• Receiver, 60-Hours operational battery life (intermittent usage)
• Lightweight, easy-to-use design
• Digital Signal Processing which is easily upgraded as new features are developed

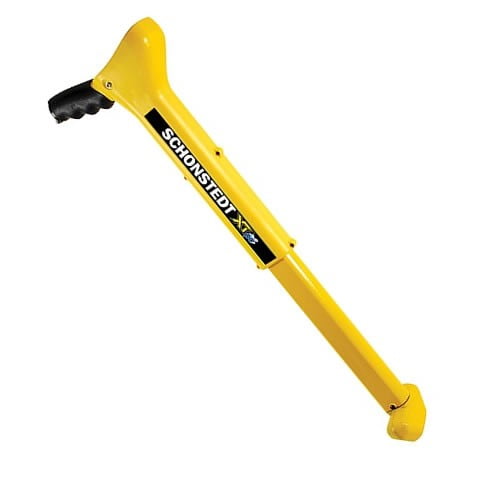

The XTpc Pipe and Cable Locator features simple one hand operation with all controls in easy reach of your thumb. The controls and the LCD display area are large and easy to understand. Clear direction arrows facilitate easy locating and foolproof centering. The XTpc Pipe and Cable Locator operates in passive mode, three different active modes (conductive, inductive and clamp), and a sonde mode.

• Operates on 33kHz or 82 kHz Frequency mode
• Passive detection of 50Hz or 60Hz, sonde or cathodic frequency (optional)
• One button depth measurement
• Digital readout display of signal strength (peak)
• LCD displays left, right and “on-target” indications (null)
• Transmitter 8-Hours operational battery life (intermittent usage)
• Audio & Visual Output
• Battery & Sensitivity Indicators
• Operates on a passive mode, three different modes (conductive, inductive and clamp), and a sonde mode
• Auto Transmitter Power off
• Ergonomic & lightweight
• Smallest for easy storage

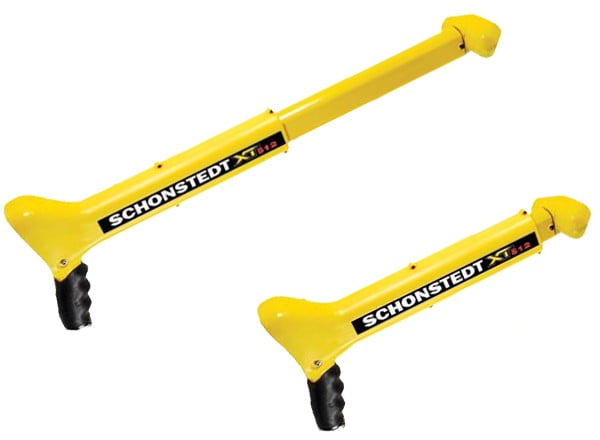

The new and revolutionary XT512 Pipe and Cable Locator combines the portability of the holsterable XTpc package with the low frequency sonde and passive locating capability found in larger more cumbersome locators. With the XT512 Pipe and Cable Locator you can locate and determine the depth of your sewer/pipe inspection camera or a small sonde such as the TM50910 from Schonstedt. The XT512 Pipe and Cable Locator is useful in locating blockages and obstructions in non-metallic pipe.

• Operates on 512 Hz Frequency mode
• Passive detection of 50Hz or 60Hz, and sonde
• One button depth measurement
• Digital readout display of signal strength (peak)
• Audio & Visual Output
• Battery & Sensitivity Indicators
• Ergonomic & lightweight
• Smallest for easy storage

Get a Quote Today  sales@icminc.us
